This equipment is a universal forging equipment suitable for various pressure processing fields, especially in the mechanical manufacturing industry. It can perform various processes such as forging, upsetting, bending, and correction. Due to its wide applicability, simple structure, convenient installation operation, and economic cost, it is widely used in forging workshops of machinery, automobiles, tractors, and aviation industries.
Its main features include:
Intelligent control: adopting an integrated mechanical and electrical control system, with sensitive response, stable operation, and pre-set strike energy.
Strong braking: Equipped with a platform fixed translational braking device, it has a large braking torque, is safe and reliable, and can achieve emergency stop at any travel position.
Sturdy structure: The body adopts a design of integral frame combined with tension rod pre tensioning, which significantly improves rigidity and strength.
Direct Drive: Upgraded control mode, with two cylinders directly pushing the spindle to perform lateral motion, making the action more direct and efficient.
Structural Description
This machine consists of a frame, transmission, flywheel, slider, control, brake, top material, air pipeline, centralized lubrication, electrical, platform and other parts.
Double Disc Friction Screw Press Main Technical Prarmeters
| Nominal force | 6300kN | die height | 470mm |
| Sports energy | 80kJ | Thickness of workbench pad | 180mm |
| Slide stroke | 600mm | Motor power | 55kw |
| Minimum sealing height | 650mm | Top material method | Pneumatic top material |
| Stroke times | 11min-1 | Maximum top material force | 100kN |
| Bottom size of slider | | Workbench dimensions | |
| left and right | 700mm | left and right | 820mm |
| front and back | 760mm | front and back | 920mm |
| Dimensions (l X w X h t) | 4910X38005X6060 | maximum stroke | 100mm |
| Total weight | ≈42000kg | | |
Product Tags:
|
|

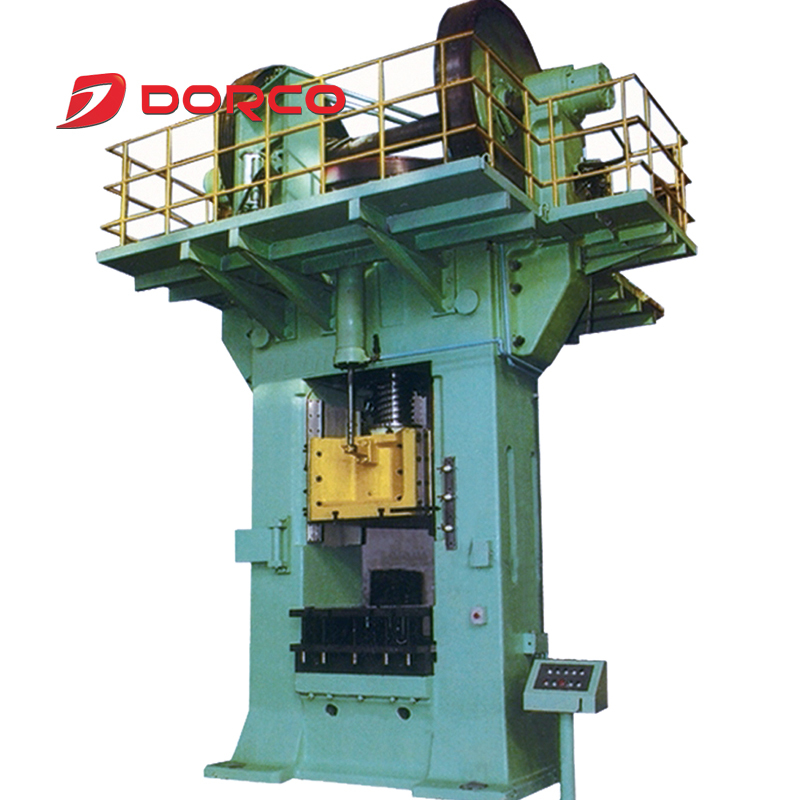

6300kN Double Disc Friction Press with 55kw Motor Images
|
